Black Fiber Optic Drop Cable High Practicability Novel Flute Design

Name: Black Fiber Optic Drop Cable High Practicability Novel Flute Design
Brand: OPTFOCUS
Price: 1 USD

Black Fiber Optic Drop Cable High Practicability Novel Flute Design Manufactures

Brand Name : OPTFOCUS

Model Number : Fiber Optic Cable

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5

Price : Negotiable

Number of Conductors : 1

Product name : Outdoor Indoor G652D G657A1 G657A2 FTTH fiber optic flat drop cable

Fiber count : 1,2,4

Cable diameter : 2.0*3.0 mm;2.0*5.0 mm

fiber type : singlemode

Color : black or white

Jacket Material : LSZH

Application : FTTH,FTTB,FTTX

Contact Now

FTTH drop cable 1 & 2 core ,SM G657A1 indoor & outdoor fiber optic flat drop cable

Product Description

1. Feature

-- The optical fiber meets the requirment of Etisalat specifications

-- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

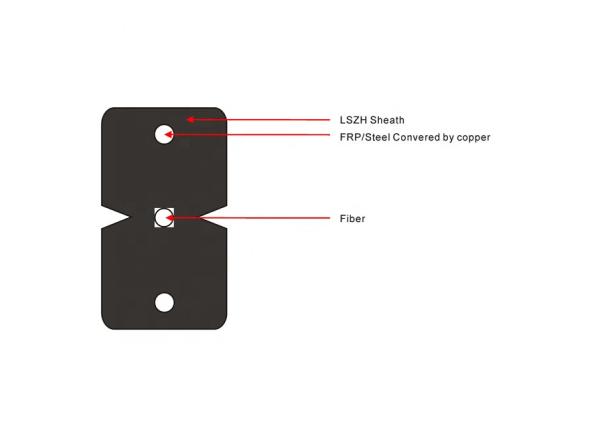

-- Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

-- Simple structure, light weight and high practicability.

-- Novel flute design, easily strip and splice, simplify the installation and maintenance.

-- Low smoke, zero halogen and flame retardant sheath.

2. Applications:

-- FTTH system

-- Indoor riser level and plenum level cable distribution

-- Interconnect between instruments, communication equipments

FIBER CHARACTERISTICS

ITEM			CONSTRUCTION (G652)
MODE FIELD DIAMETER @1310NM			8.6±0.4μm
CLADDING DIAMETER			125±1μm
CORE CONCENTRICITY ERROR			<=0.6μm
CLADDING NON-CIRCULARITY			<=1.0%
PRIMARY COATING DIAMETER			250±15μm
COATING-CLADDING CONCENTRICITY ERROR			<=12.5μm
FIBER CURL RADIUS			>=4m

TRANSMISSION CHARACTERISTICS

ITEM		performance
ATTENUATION	1310nm 1550nm	<=0.40db/km <=0.30db/km
MACRO BENDING LOSS	30mm 10 tums at 1550nm	<=0.50db
CUT-OFF WAVELENGTH		<=1260nm
CHROMATIC DISPERSION	1310nm 1550nm	<=3.5ps/nm.km <=18ps/nm.km
ZERO DISPERSION WAVELENGTH		1300-1324nm

Packing & delivery

1. Delivery in standard hengths of 1000 meters

2. Custornized lengths are slso dvailable

3. Protocied against trarsh envionmental condiuons.
