OFS-SF1T4
4ports 100M + 1port 100M SFP Fiber Switch
Description:
OFS-SF1T4 series is a Layer 2 + Optical Ethernet switch with 1*100Mbps SFP Optical fiber ports and 4*10/100Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.
OFS-SF1T4's high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc.
Technical Specifications
| Product Name | 4-port 10/100Mbps + 1-port 100Mbps SFP Fiber |
| Product Model | OFS-SF1T4 |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x; |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| Fiber Media | Multi-mode: 2KM Single-mode: 20/40/60/80/100KM |
| Performance Specification | Bandwidth: 1Gbps
Packet Forwarding Rate:148800pps/port
MAC Address Table:1K |
| Forwarding Mode | Store-and-Forward |
| LED Indicators | Power: PWR;FX Link/Act;TP FDX(1-4); TP Link/Act(1-4) |
| Power Supply | Input: AC100 ~ 250V, Output:DC5V 2A. |
| Max power | 4W |
| Environment temperature | 0 ~ +55℃ |
| Storage temperature | -20 ~ +70℃ |
| Humidity | 5% ~ 90% |
| Dimensions | 28 × 93 × 140mm |
Feature:
4 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps SFP Slot
Automatic MAC address learning and aging
10/100Mbps Auto-negotiation , auto-MDI-MDI-X
LED indicators for monitoring power/link/activity
Supports10/100Mbps-Full/Half-duplex
Supports Wall-mount and DIN-Rail installation ,Optional.
Supports Broadcast Storm Control
Excellent heat elimination without cooling fan.
Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
Harsh environment or higher requirement
-10℃-55℃operating temperature range.

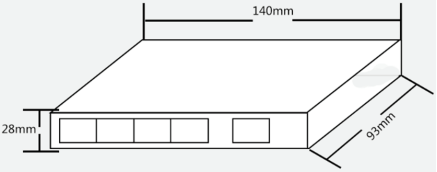

Chassis Dimension:
Power Supply Standard:
